Haulmark Trailers

Cardinal Sales

2501 Broad Street
New Castle, Indiana 47362
FACTORY PICKUPS

This page was last updated: September 2, 2008
Shown  RT85X22WT3 (5200LB AXLES )
PACKAGE OF: WHITE WALLS & CEILING, RAMP DOOR, 48" SIDE DOOR, STONE GUARD,  12" EXTRA HEIGHT, SPARE TIRE AND WHEEL , RV LATCH
20' $ . FACTORY PICKUP BRISTOL, INDIANA 47362
FITZGERALD, GEORGIA 20' $
Plus Haulmark pickup fee. Indiana $100. UT, GA,AZ,OK, PA $150.       9-4-2009
HAULMARK RACE TRAILERS
8.5 X 22'
Haulmark raises the bar again.
With its functional design and value-intensive construction, this is an ideal trailer if you're looking for a hard-working, tag hitch race car hauler. And now it has more standard features than competing brands. Like one piece aluminum roof, a full 94-inch rear ramp door width, L.E.D. exterior taillights, white vinyl interior walls and ceiling, polished aluminum curved front cap, chrome corners, a 24-inch stone guard and 16-inch centers on all frame crossmembers, wall studs and roof bows. Available up to 36 feet in length, you can haul one car with plenty of room left over for tools, parts and equipment. With features like torsion suspension, radial tires and optional third axle, the Race Trailer has everything you need for taking your car to the track.
Features Benefits
One piece aluminum roof  *  Better weather protection

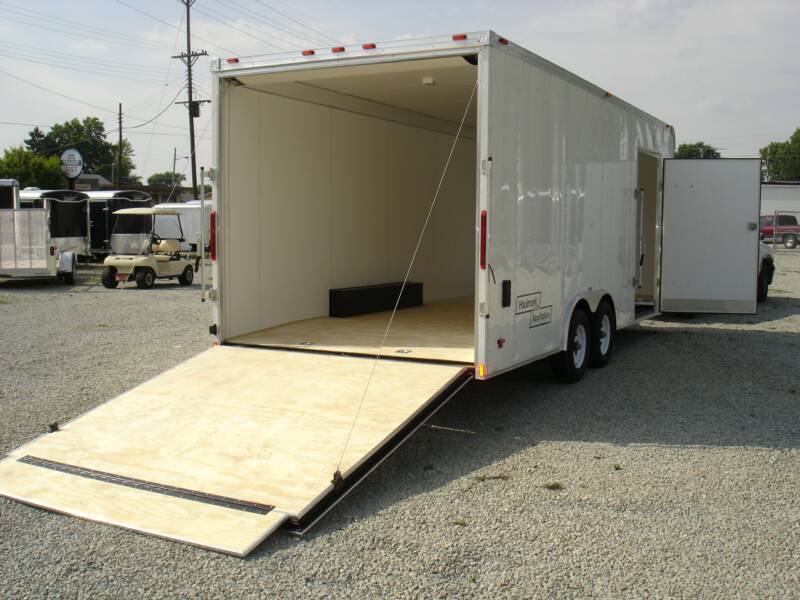

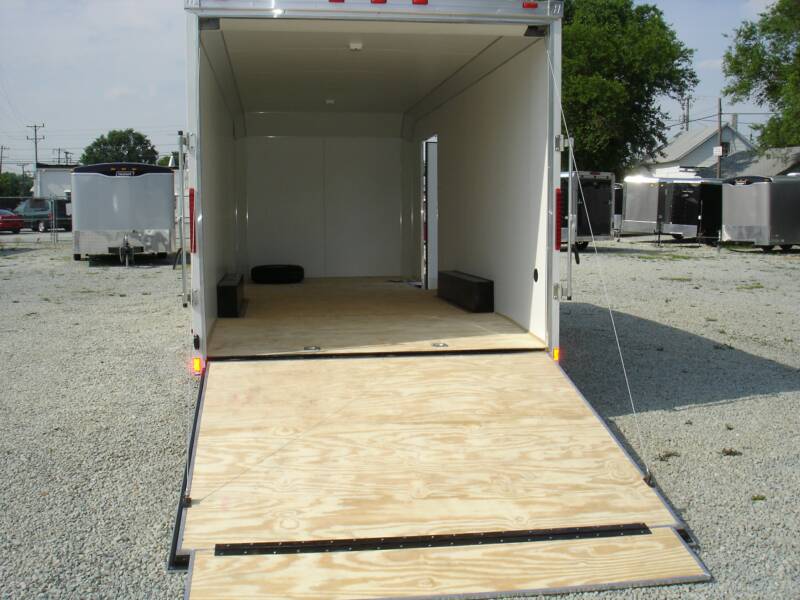

Full 94 inch rear ramp door width *  Easier entry - loading and unloading

L.E.D. exterior lights  * Brighter, safer and longer lasting lighting

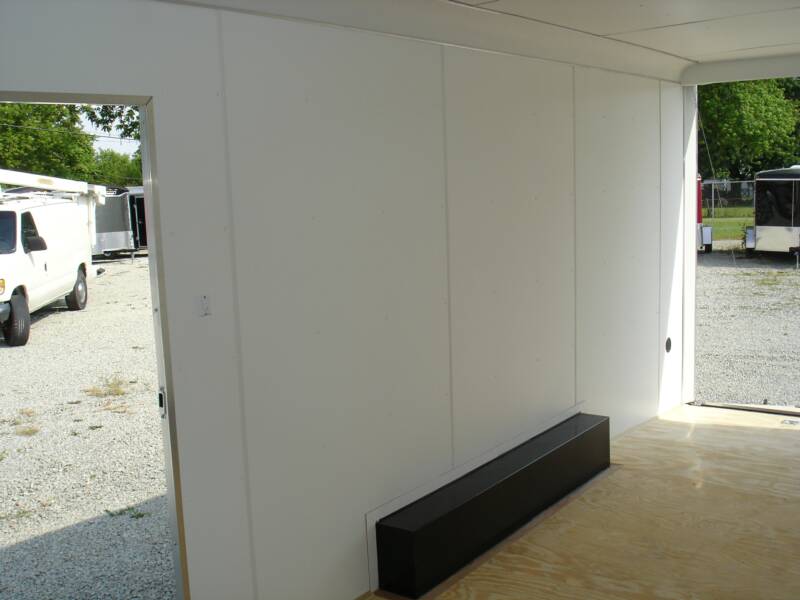

White vinyl interior walls and ceiling  * Looks bright and cleans easily

Polished aluminum curved front cap  *  Racier look, so you'll fit right in with your racing buddies

Chrome corners  * More professional, premium look

Frame crossmembers, wall studs and roof bows all on 16 inch centers  *  Built strong for the way you work and play

24 inch stone guard  *   Improved appearance and better return on investment


Model: RT85X22WT3
Exterior
Length: 22ft Long
Width: 8-1/2ft Wide

Interior

Loading and Towing
2,000lb Tongue Jacks: 2,000lb Silver Powder Coated Top Wind Tongue Jack
Hitch Type: Tag
Jack Accessories: Sand Pad
Safety Chains: 12,600lb Gold Safety Chains w/Gold Hook
GVWR: 10000

Suspension
Tires: ST225/75R15 D Rated Tires
Wheels: 15in 6 Hole White Spoke Wheels
Axle Width: Wide Track
Hub Type: EZ-Lube Hubs
Suspension: Rubber Ride Suspension
Weight: 5,200lb Axles
Wheel Accessories: ABS Chrome Center Caps

Brakes
Brake Accessories: Breakaway Switch
Brake Type: Electric Drum Brakes
Braking System: Standard Braking System

Doors
Rear Doors: Standard Wt. Rear Ramp Door w/16in Plywood Ext.

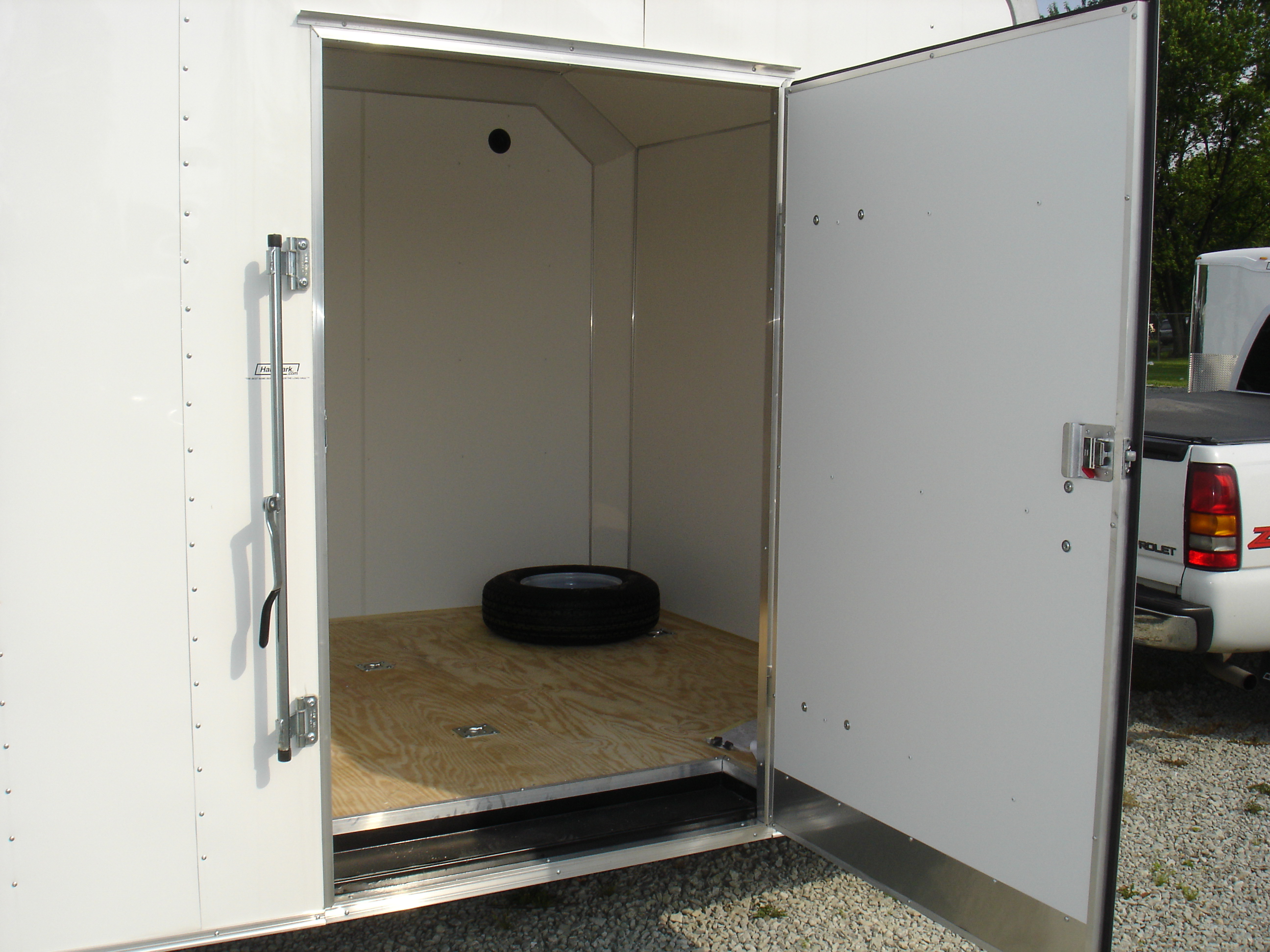

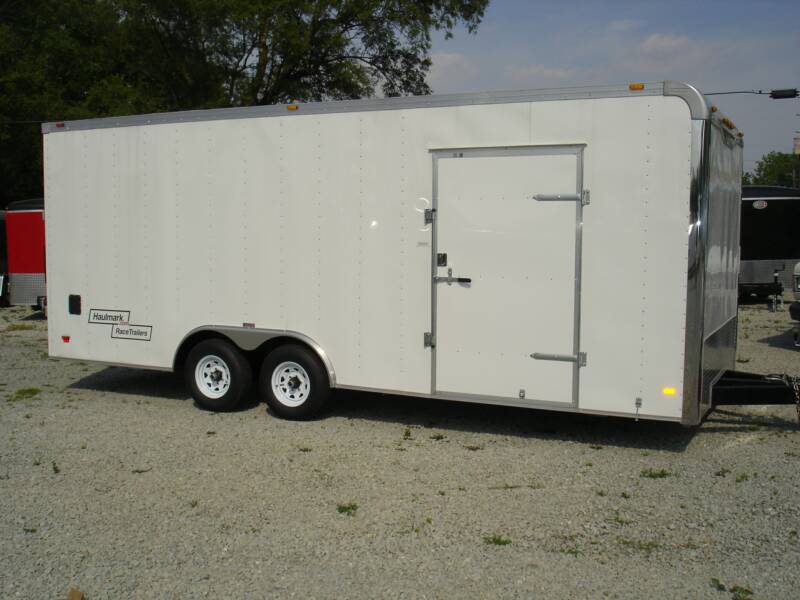

Side Doors: 48in Bar-Lock Side Door
Construction
Cap: Polished Aluminum Cap
Ceiling Liner: White Vinyl Ceiling Liner
Crossmember Spacing: Crossmembers 16in On Center
Crossmembers: Z Crossmembers
Finish: .030 Aluminum Exterior
Floor Covering: 3/4in Plywood Floor Covering
Main Rails: 2in x 6in Tube Main Rails
Nose and Corners: Chrome Front Corners
Roof: 1-Piece Aluminum Roof
Roof Bow Spacing: Roof Bows 16in On Center
Roof Bows: Hat Section Roof Bows
Sidewall Construction: Dust Resistant Sidewalls
Sidewall Liner: 5.2mm White Vinyl Sidewall Liner
Stoneguard: 24in ATP Stoneguard
Vertical Post Spacing: Vertical Posts 16in On Center
Vertical Posts: 84-3/4in Hat Posts

Additional Specs
A-Frame Couplers: 2-5/16in 10,000lb Coupler
Beavertail: 48in Beavertail
Bolt Pattern: 6 Bolt Pattern
Frame: Skid Plate
Frame Type: Steel Frame
Lighting: 12v Dome light
Lighting: LED Turn Signal/Brake Light
Power: 12v Surface-Mount Switch
Starting Angle: 10 Degree Up Angle
